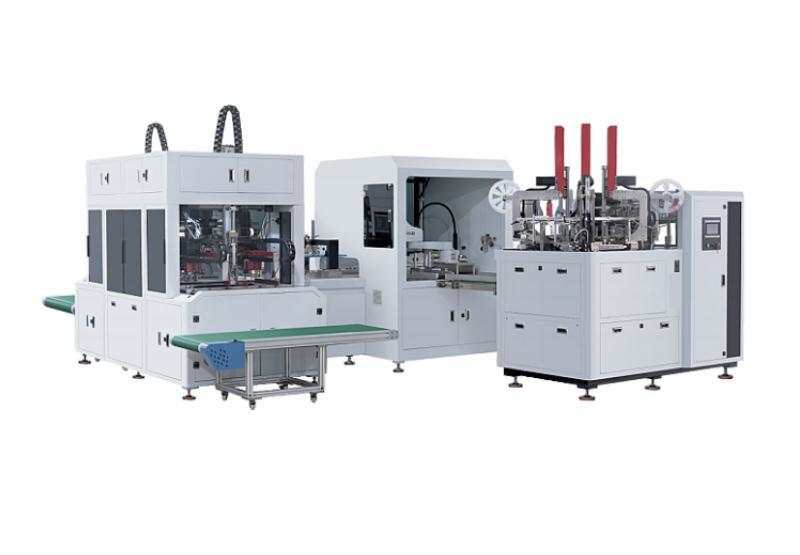

JX-CS620B Automatic Rigid Box Machine

MODEL

JX-CS620B Automatic Rigid Box Maker

Cover Paper Size(L×W)

Max.800mm×600mm

Min.140mm×100mm

Rigid Box Wrapping Size

(L×W)

Max.400mm×400mm

Min.100mm×60mm

15mm-120mm

Max.size of Cardboard-sheet(L×W)

Max.cardboard-pile height

900mm

Cardboard Thickness

1mm-3mm

Turn in Depth Folding

10-80mm/10-100mm

Precision

0.2mm

Working Speed

1-44pcs/min

Total Power

25kw

Voltage supply

AC380V,50Hz, 3-Phase 4-Line

Air Source Supply

0.8MPA

Net Weight

6600kgs

Remark:

1. The max and mini sizes of the boxes are subjected to the sizes of cover paper and the quality of the paper.
2. The machine-speed depends on the sizes of the boxes，glue condition ,cardboard thickness, turn in depth etc.

3.The max.and min.length,width and height of one box could not be made on same box.
